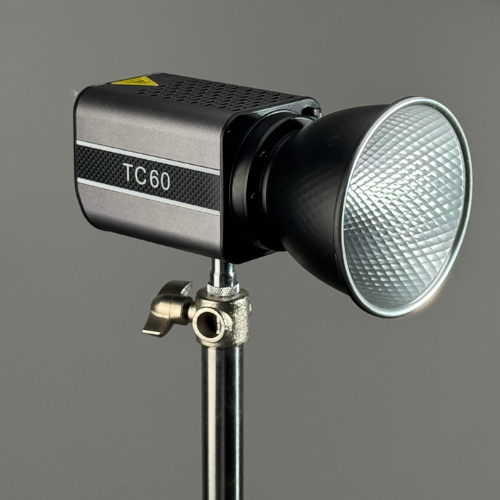

Cine Light TC60

Technical Specifications

• Model: TC60
• Type: COB LED photographic light
• Storage dimensions: 140 × 84 × 82 mm
• Net weight: 730 g
• Materials: Aluminum alloy + ABS + PC
• Cooling system: Built-in fan (1 unit)
• Reflector: Aluminum alloy
• Power supply: AC adapter + built-in battery

Power & Electrical Specifications

• Total power output: White 60 W / Warm White 60 W / Neutral White 60 W
• Battery input: 14.8 V / 3.37 A
• Adapter input: 20 V / 2.5 A
• Output voltage / current: 36 V / 1.25 A
• Output power: 50 W
• Charging input power: 80 W
• Charging output: 20 V / 4 A
• Charging time: approx. 1.5 hours
• Frequency: 50 Hz
• AC input: 175 – 265 V
• Adapter output: 20 V / 4 A

Control & Display

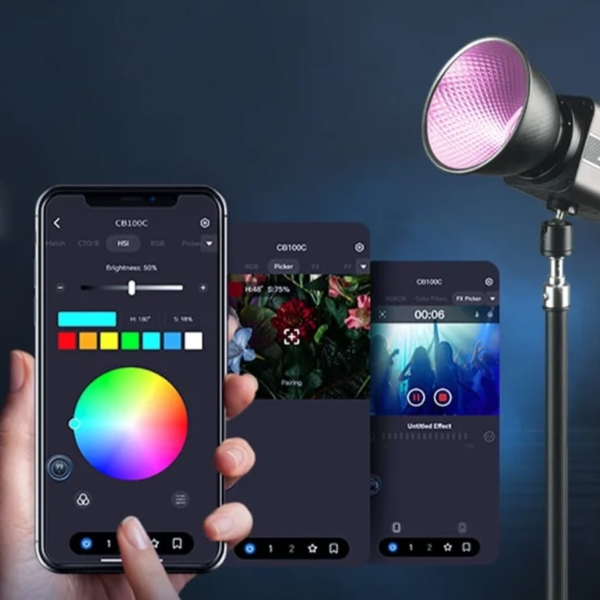

• Control: Rotary dial + mobile application
• Encoder: Switch encoder
• Display: LED screen (22 × 11 mm)
• Power-off memory: Yes

Battery Performance

• Battery capacity: 3,200 mAh
• Runtime:
• 54 minutes at full power (White / Warm White)
• 96 minutes at half power (White / Warm White)

Lighting Performance

• CRI: RA ≥ 95
• Color temperature: 2700 K – 6500 K
• Illuminance at 1 m:
• White: 10,800 lux
• Warm White: 8,540 lux
• Neutral White: 10,100 lux
• Dimming range: 1 – 100%
• Beam angle: 120°

Lighting Modes

• CCT mode: White / Warm White / Neutral White
• PH mode: One-click intelligent lighting (8 scenes)
• FX mode: 36 effects (12 modes × 3 sub-modes)
• ISL modes: Portrait, home appliances, beauty & makeup, daily products, agricultural products, clothing & hats, food, jewelry

Light Source

• Light source: Bi-color COB LED
• Emitting surface: Ø 24 mm
• Number of LEDs: 240 LEDs
• Source voltage: 36 V
• Light source mount: Superconductive aluminum (thermal conductivity 2 W)
• Mount thickness: 1.5 mm
• Power per LED: 0.5 W

Cooling System

• Fan: 1 unit (6015 size, lubricated core)
• Speed: 2000 RPM
• Noise level (50 cm): 45 dB
• LED temperature: approx. 48 °C (after extended use)
• Housing temperature: approx. 30 °C

Mounting & Standards

• Mounting: Copper threaded mount (tripod / light stand compatible)
• Standards: GB7000.19-2005 / GB7000.1-2015

Box Contents

• 1 × TC-60 Video Light
• 1 × 3 m power cable
• 1 × Remote control (app-enabled)
• 1 × Reflector
• 1 × Large reflector adapter
