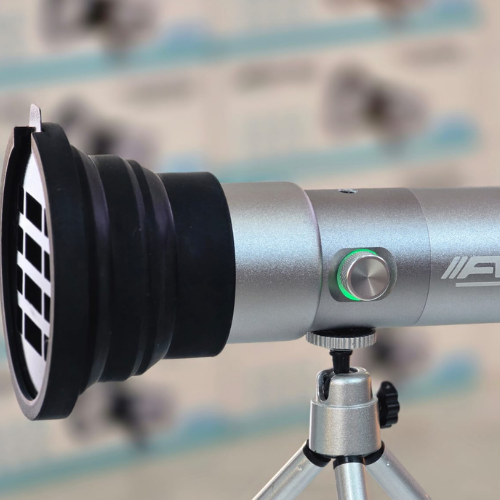

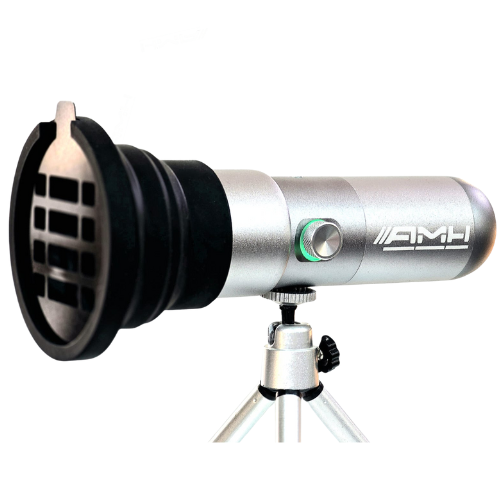

AMH Snoot Cine Light SL-15

Technical Specifications

• Model: AMH Snoot Cine Light SL-15
• Type: Compact LED snoot light with focused beam
• Total power output: 10 W per color

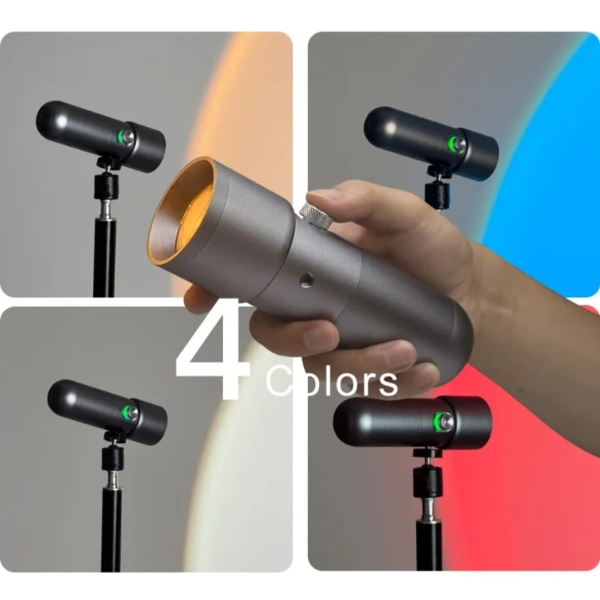

• Light colors: White / Yellow / Blue / Red
• Power supply: Built-in rechargeable battery
• Control: Integrated rotary dial
• Dimming range: 1–100% continuous dimming

Electrical Specifications

• Power output: White 10 W / Yellow 10 W / Blue 10 W / Red 10 W
• Operating voltage: 3.7 V
• Charging port: USB Type-C
• Charging input: 4.2 V / 2.1 A
• Battery capacity: 7,500 mAh
• Battery life: approx. 350 minutes at full power
• Charging time: approx. 200 minutes

Lighting Performance

• Illuminance:
• White: 924 lux
• Yellow: 955 lux
• Blue: 687 lux
• Red: 450 lux
• Beam angle: 120°
• Lighting modes: White / Yellow / Blue / Red

Light Source

• Type: High-power LED
• LED configuration: White ×1 / Yellow ×1 / Blue ×1 / Red ×1
• Power per LED: 10 W
• Aluminum substrate diameter: Ø 25 mm
• Substrate thickness: 1.2 mm

Design & Dimensions

• Dimensions: Length 156 mm × Ø 52 mm
• Weight: 425 g
• Materials: ABS + PC

LED Indicators

• Battery 100–30%: solid green indicator
• Battery 30–10%: solid red indicator
• Battery < 10%: flashing red indicator (1 Hz)
• Charging: solid red indicator
• Fully charged: solid green indicator

Box Contents

• 1 × AMH Snoot Cine Light SL-15
• 1 × USB-C charging cable
• 1 × User manual
• 1 × Protective silicone cover

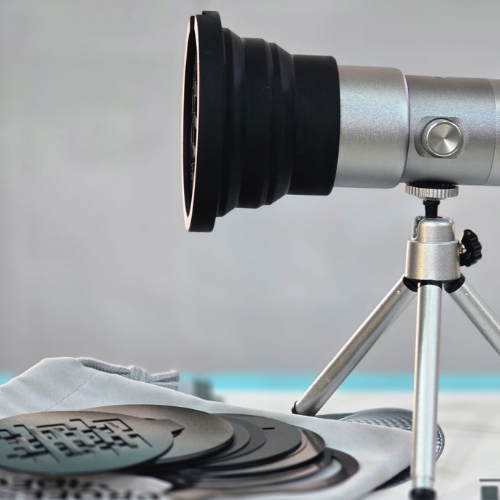

• 20 × Gobos
